Brand: Suprema
Features:
- Biometric Fingerprint / IP Rating IP65 / Multi-Controller
- RF Option : BS2-OIPW : 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR, NFC
- CPU 1.0GHz RISC / Memory 128MB RAM + 8GB Flash / LCD 2.8" Color / LED Indicator Multi-Color / Sound 16bit Hi-Fi
- WiFi / TCP/IP / RS-485 1ch Host or 1ch Slave (Selectable) / RS-232 / Wiegand 1ch In,1ch Out
- Dimensions 142 x 144 x 45 (WxHxD mm) / Certificates CE, FCC, KC, RoHS, REACH, WEE
Publisher: Suprema
Details: Description

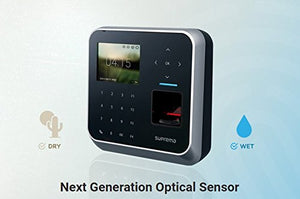

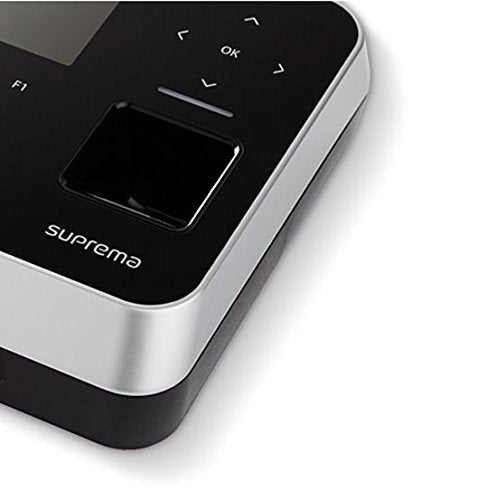

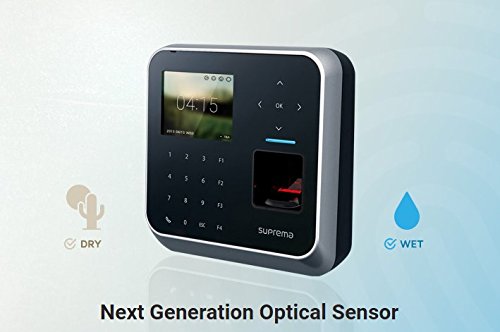

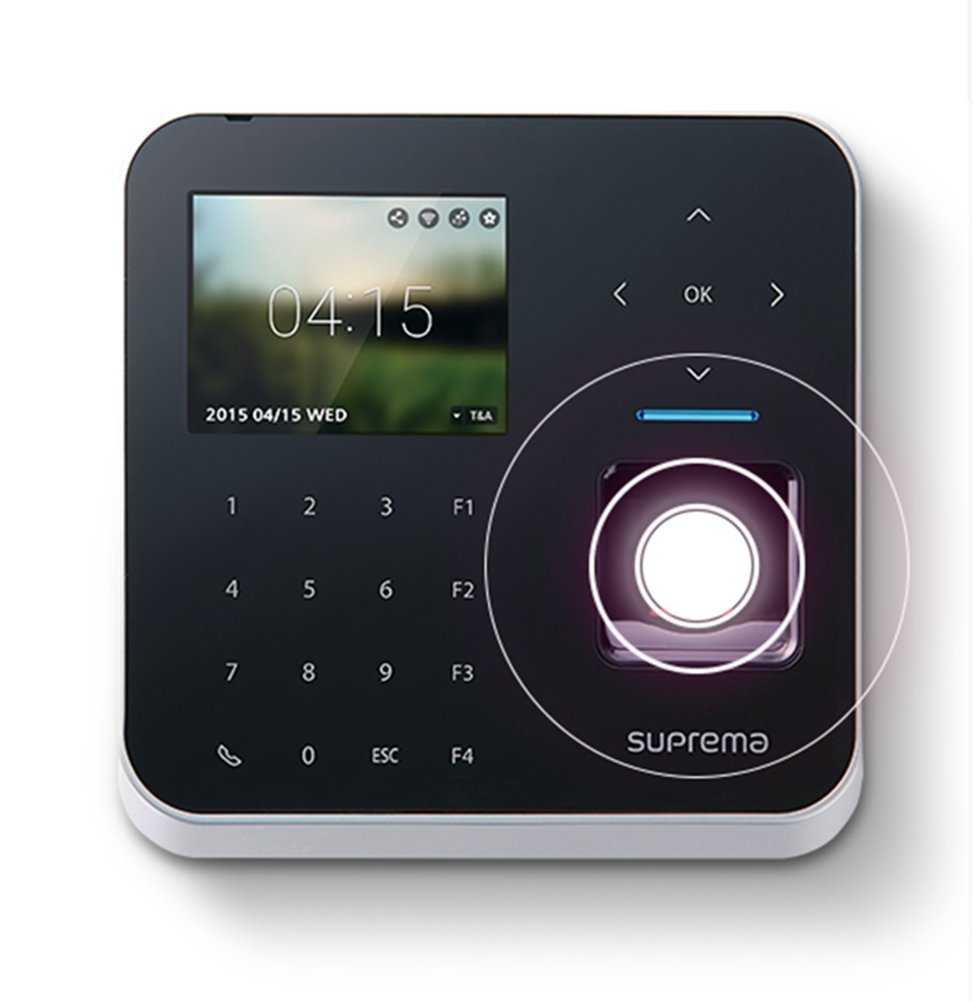

BioStation 2
BioStation 2 incorporates the latest Suprema technology in a beautiful exterior.
It combines a new powerful processor, Suprema's next generation optical sensor and improved fingerprint sensing & capturing algorithm to offer unrivaled performance. BioStation 2 provides users with instant authentication and rapid data transfer to manage high volume data with ease.
It is ideal for applications that require versatility without compromise in style and performance.
Specification
Main
- Biometric : Fingerprint
- IP Rating : IP65
- RF Option : BS2-OIPW : 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, iCLASS SE/SR, NFC
- Multi-Controller: Yes
- Capacity : Max. User (1:1)500,000
- Max. User (1:N) : 20,000
- Max. Template (1:1) : 1,000,000
- Max. Template (1:N) : 40,000
- Max. Text Log : 3,000,000
Interface
- WiFi : Yes
- TCP/IP : Yes
- RS-485 : 1ch Host or 1ch Slave (Selectable)
- RS-232 : Yes
- Wiegand : 1ch In, 1ch Out
- Input : 2 Inputs
- Relay : 1 Relay
- USB : Host
- SD Card Slot-
Hardware
- CPU : 1.0GHz RISC
- Memory : 128MB RAM + 8GB Flash
- LCD : 2.8" Color
- LED Indicator : Multi-Color
- Sound : 16bit Hi-Fi
- Operating Temp. : -20° to 50°C
- Tamper : Yes
- Power : 12VDC
- PoE : Yes
- Dimensions : 142 x 144 x 45 (WxHxD mm)
- Certificates : CE, FCC, KC, RoHS, REACH, WEE
Compatibility
- BioStar 1.x : NO
- BioStar 2 : Yes
UPC: 689054165479
EAN: 689054165479
