Brand: Commscope
Features:
- The Andrew 7577540-01 NODE A digital channel module is where the uplink and downlink signals are
Publisher: CommScope

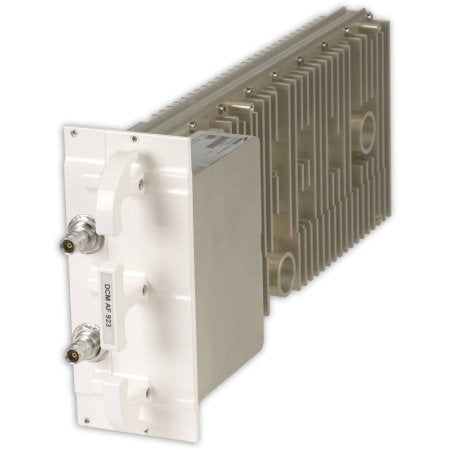

Details: The Andrew 7577540-01 NODE A digital channel module is where the uplink and downlink signals are filtered and amplified. This amplifier module is designed for the 850 MHz cellular band (824 - 849 MHz / 869 - 894 MHz). The digital channel BDA module features 84 dB gain and 27dBm UL/30dBm DL composite power. Antenna port is N female connector type. The NODE A amplifier module easily slides into the subrack. WARNING. This is NOT a CONSUMER device. It is designed for installation by FCC LICENSEES and QUALIFIED INSTALLERS. You MUST have an FCC LICENSE or express consent of an FCC Licensee to operate this device. Unauthorized use may result in significant forfeiture penalties, including penalties in excess of $100, 000 for each continuing violation. This listing is for Each. Temperature Range -30-50 deg C Composite Power Uplink 27 dBm Item Length 7 in Single/Dual/Quad Outputs Single Item Weight 7 lb Item Height 16 in Gain 84 dB Item Width 4 in RF Connectors N Female, QN Female Bands Supported 850 CELL Single/Dual Inputs Single Composite Power Downlink 30 dBm Qty/ Uom 1 Each
Package Dimensions: 16.0 x 7.0 x 4.0 inches
