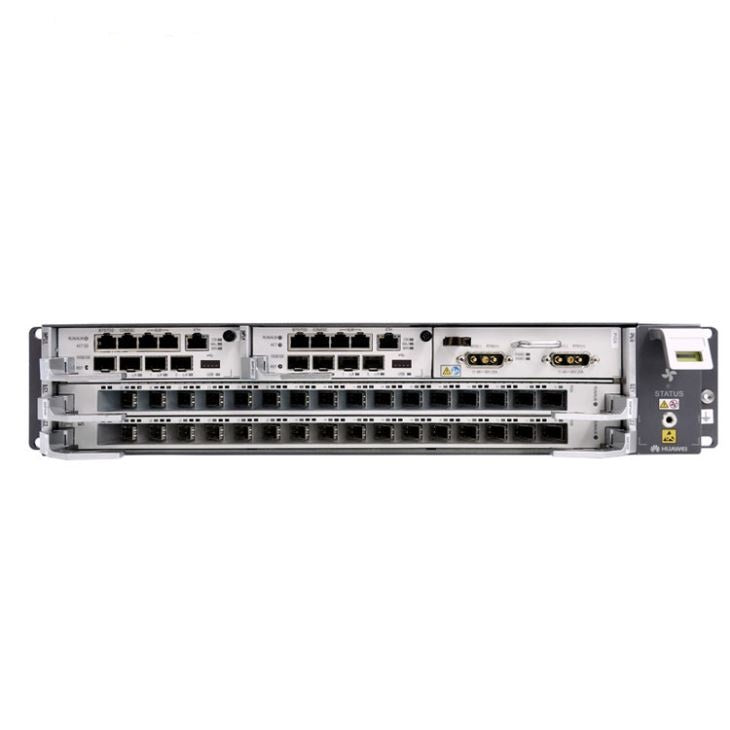

Gpon OLT Huawei MA5800-X2 Huawei New Model OLT Good price Brand New English Version Huawei Gpon with 2 slots Gpon OLT.
1.Production description of MA5800-X2:
●MA5800 multi-service access equipment is the industry's leading distributed architecture of the intelligent convergence OLT platform, targeting NG-PON for the next generation of OLT. MA5800 is committed to helping customers build a "wider, faster, more intelligent" Into the network, to provide users with a better business experience.
●MA5800 provides GPON, 10G GPON, EPON, 10GE EPON, P2P GE and 10GE access, including FTTH, FTTD, FTTB, FTTC and D-CCAP, including home access, enterprise access Into the mobile bearer and WIIF hot return and other business scenarios need to achieve a full-fiber network business.
●MA5800 integrates the functions of OLT and aggregation switches to support the convergence of ONT, MDU and campus switches as a large-capacity aggregation device to help simplify the network architecture and reduce OPEX.
2.Product parameter of the MA5800-X2:
Production Specification:
| Instructions |
MA5800-X17 |
MA5800-X15 |
MA5800-X7 |
MA5800-X2 |
|
Compatible cabinets |
N63E-22 |
No matching cabinets |
N63E-22 |
N63E-22 |
|
Board configuration |
Main control board slot: 9,10 |
Main control board slot: 8,9 |
Main control board slot: 8,9 |
Main control board slot: 3,4 |
|
Width x Depth x Height (mm) |
11U high, 21 inches wide |
11U tall, 19 inches wide |
6U tall, 19 inches wide |
2U tall, 19 inches wide |
|
Max. weight (with mounting ears) |
45kg |
35kg |
26kg |
9.4kg |
|
Max. input current |
60A |
60A |
40A |
DC power supply: 20A |
|
Power supply |
DC power supply |
DC power supply (dual backup) |
||
|
Working voltage range |
-38.4V～-72V DC |
DC power supply: -38.4V ~ -72V |
||
|
Rated voltage |
-48V/-60V |
DC power supply: -48V / -60V |
||
|
Working temperature |
40 ℃ ~ +65 ℃ (normal work) |
|||
|
Working environment humidity |
5%RH～95%RH |
|||
|
Air pressure environment |
70kPa～106kPa |
|||
|
Altitude |
4000m below the air density will change with altitude, thus affecting the equipment cooling capacity, so the working environment temperature will change with altitude. |
|||
|
Backplane bus switching capacity |
10.5 Tbit/s |
9.36 Tbit/s |
4.68 Tbit/s |
1.6 Tbit/s |
|
Switchboard capacity |
H901MPLA/H901MPLB/H901MPLC：7 Tbit/s |
H901MPSC：480 Gbit/s |
||
|
Max. bandwidth per slot (load sharing mode) |
H901MPLA/H901MPLC：100 Gbit/s |
H901MPSC：80 Gbit/s |
||
|
4K video users concurrent number |
16000 |
8000 |
2000 |
|
|
Number of MAC addresses |
262143 |
|||
|
ARP / routing table entry |
65536 |
|||
|
Exchange forwarding delay |
Has a lower forwarding delay. 100Mbit / s Ethernet port to send 64Byte Ethernet packets, the delay does not exceed 20μs. |
|||
|
Full error rate |
When the port is at full load, the bit error rate (bit error rate) <10 e-7. |
|||
|
System reliability index |
Typical Configuration System Availability:> 99.999% |
|||
|
GPON edge number |
272 |
240 |
112 |
32 |
|
10 G GPON port number |
136 |
120 |
56 |
16 |
|
EPON port number |
272 |
240 |
112 |
32 |
|
10 G EPON port number |
136 |
120 |
56 |
16 |
|
GE/FE port number |
816 |
720 |
336 |
96 |
|
10GE port number |
136 |
120 |
56 |
16 |
|
E1 port number |
544 |
480 |
224 |
64 |
3.Product feature and application of the MA5800-X2:
Distributed architecture:
The MA5800 uses the same distributed architecture as the router to distribute the traffic processing on the main control board to each service board to improve the switching capacity and performance of the system. The reliability of the staff is improved.
●Centralized: exchange and business processing focused on the master, suitable for low traffic scenarios;
●Distributed: exchange in the master, business processing in the business board, suitable for high traffic scenarios;
Best Video Business Experience:
●MA5800 supports distributed caching for faster 4K / 8K video boot and channel switching.
●Support vMOS video quality monitoring, board through the built-in probe to achieve the acquisition of video indicators, and remote monitoring and query through the network management results to enhance the video operation and maintenance experience.
●OLT upgrade process, the video business is not interrupted, enhance the user experience.
40G / 100G PON smooth evolution
●Single-slot maximum broadband 200Gbit / s, can achieve 16-port 10G GPON access without convergence. 40G / 100G PON smooth evolution does not change the box to protect the investment.
●MAC / IP address smooth expansion, no need to replace the main control board to achieve business smooth expansion, to meet the multi-service and massive intelligent terminal connection needs.
4.Product details of the MA5800-X2:
Device Configuration
| Main Control Board |
MA5800-X17/X15 |
MA5800-X7 |
MA5800-X2 |
|
|
H901MPLB |
System forwarding and control core, providing four GE / 10GE uplink interface to support load sharing. By default, the main control board is used. |
Support |
Support |
No Support |
|
H901MPLA |
Support |
Support |
No Support |
|
|
H901MPLC |
Support |
Support |
No Support |
|
|
H901MPSC |
No Support |
No Support |
Support |
|
|
Main control board buckle board |
MA5800-X17/X15 |
MA5800-X7 |
MA5800-X2 |
|
|
H901CKUA |
Supporting the use of the main control board, to the system to provide three clocks, support 1588v2, 1588ACR |
Support |
Support |
No Support |
|
H901CKUB |
Supporting the use of the main control board, to the system to provide three clocks, support 1588v2 |
Support |
Support |
No Support |
|
Uplink interface board |
MA5800-X17/X15 |
MA5800-X7 |
MA5800-X2 |
|
|
H901NXED |
8-port 10GE / GE Ethernet uplink, it is recommended to use more uplink ports |
Support |
Support |
No Support |
|
Universal interface board |
MA5800-X17/X15 |
MA5800-X7 |
MA5800-X2 |
|
|
H901CIUA |
Provide synchronization time / clock input and output interface, alarm volume / switch input and output interface, RS485 serial port, through the network port |
Support |
Support |
No Support |
|
Fan Monitoring Board |
MA5800-X17/X15 |
MA5800-X7 |
MA5800-X2 |
|
|
H901FMLA |
Power supply, control and monitoring of the fan |
Support |
No Support |
No Support |
|
H901FMMA |
No Support |
Support |
No Support |
|
|
H901FMSA |
No Support |
No Support |
Support |
|
|
Service Board |
MA5800-X17/X15 |
MA5800-X7 |
MA5800-X2 |
|
|
H901GPHF |
16 port GPON user access |
Support |
Support |
Support |
|
H901GPSF |
16 port GPON user access |
Support |
Support |
Support |
|
H901XGHD |
8-port asymmetric 10G GPON user access |
Support |
Support |
Support |
|
H901XSED |
8 port symmetrical 10G GPON user access |
Support |
Support |
Support |
|
H901CGCD |
8-port asymmetric 10G GPON and GPON user access |
Support |
Support |
Support |
|
H901EPHF |
16 port EPON user access |
Support |
Support |
Support |
|
H901XEHD |
8-port 10G EPON user access, support symmetrical and asymmetrical 10G EPON |
Support |
Support |
Support |
|
H901EDSH |
32 E1 uplink, support native TDM mode |
Support |
Support |
Support |
|
H901OGHK |
48 GE / FE P2P access |
Support |
Support |
Support |
|
H901OXHD |
8-port 10GE / GE Ethernet aggregation |
Support |
Support |
Support |
|
H901CVEC |
Work with subordinate CMC devices to handle DVB and FM services |
Support |
Support |
No Support |
|
Power Board |
MA5800-X17/X15 |
MA5800-X7 |
MA5800-X2 |
|
|
H901PILA |
Provide -48V external DC power input |
Support |
Support |
No Support |
|
H901PISA |
Provide -48V external DC power input |
No Support |
No Support |
Support |
|
H901PISB |
Provide all the way to input and support the battery power supply |
No Support |
No Support |
Support |
Key Features:
●Layer 2 features:
•VLAN + MAC forwarding
•SVLAN + CVLAN Forwarding
•PPPoE +
•DHCP option82
●Multicast:
•IGMP v2 / v3
•IGMP proxy
•IGMP snooping
•VLAN - based IPTV multicast
●Three characteristics:
•Static routing
•RIP
•OSFP / OSPFv3
•IS-IS
•BGP / BGP4 +
•ARP
•DHCP relay
•VRF
●QoS:
•Traffic classification
•Priority processing
•Traffic policing based on trTCM
•WRED
•Traffic shaping
•HQoS
•PQ / WRR / PQ + WRR
•ACL
●MPLS & PWE3
•MPLS LDP
•MPLS RSVP-TE
•MPLS OAM
•tunnel protection switching
•TDM / ETH PWE3
•PW protection switching
•MPLS BGP IP VPN
●IPv6:
•IPv4 and IPv6 dual stack
•IPv6 Layer 2 and Layer 3 forwarding
•DHCPv6 relay
●System reliability:
•GPON type B / type C protection
•10G GPON type B protection
•EPON type B / type D protection
•10G EPON type B protection
•Board and Board LAG
•MSTP
•Mainboard ISU (In-Service Software Upgrade)
•Dual main control board, dual power supply redundant backup
•On-line monitoring and repair
•Business overload control
●Green Technology:
•Compliance with EU CoC (Code of Conduct) V4 energy efficiency standards
5.Delivery Time, Shipping, Package and Service of the MA5800-X2:
|
Delivery Time: |
5-10working days after we receive the payment |
|
Shipping: |
By DHL; By Air; By Sea |
|
Package: |
Original Huawei Pakcage |
|
Service: |
Technical support; 1 year warranty |
